Sonnet Echo Dual NVMe Thunderbolt Dock

40Gbps Thunderbolt Dock with Internal High Performance Storage Expansion
Product Highlights
  • Two M.2 NVMe SSD Sockets- Add up to 16TB of storage inside (SSDs sold separately); achieve data transfer speeds up to 3000 MB/s (SSDs configured as RAID 0 set).
  • Four 10Gbps USB Charging Ports USB Type-C and Type A ports power and charge your devices
  • Thunderbolt Daisy-chaining Attach up to five daisy-chained Thunderbolt devices
  • Supports Up to a 5K Display Maximize the utilization of one computer Thunderbolt port
  • Compatible with all Thunderbolt 4 computers, all M1, M1 Pro, M1 Max Macs, all Thunderbolt 3 Mac and Windows computers, and iPad Pro tablets with a Thunderbolt port
  • Ürün Tanımı
  • Teknik Özellikler

Enhance your creative workflow by using the Echo Dual NVMe Thunderbolt Dock from Sonnet to add high-speed storage and USB ports to your compatible system. This compact Thunderbolt 3 enclosure includes two M.2 2280 NVMe PCIe 3.0 x4 slots, allowing you to install up to 16TB of storage using separately purchased SSDs. Once installed, you can use the dock to transfer up to 1500 MB/s from the drives individually or reach up to 3000 MB/s with a RAID 0 configuration.

Attach the Echo Dual NVMe Thunderbolt Dock to your Thunderbolt 3 compatible Windows, Mac, or iPad Pro system using the included cable for 40 Gb/s connection speeds and 15W of power. An included ThunderLok 3 Thunderbolt connector clip helps to ensure that your system connection stays secure. Additional Thunderbolt devices may be daisy-chained through the Thunderbolt peripheral port. This dock also includes two USB 3.2 Gen 2 Type-C ports and two Type-A ports, each of which can transfer up to 10 Gb/s and 7.5W of power to compatible devices.

Part Number ECHO-DK2M2-TB
Hardware
Form Factor Thunderbolt dock

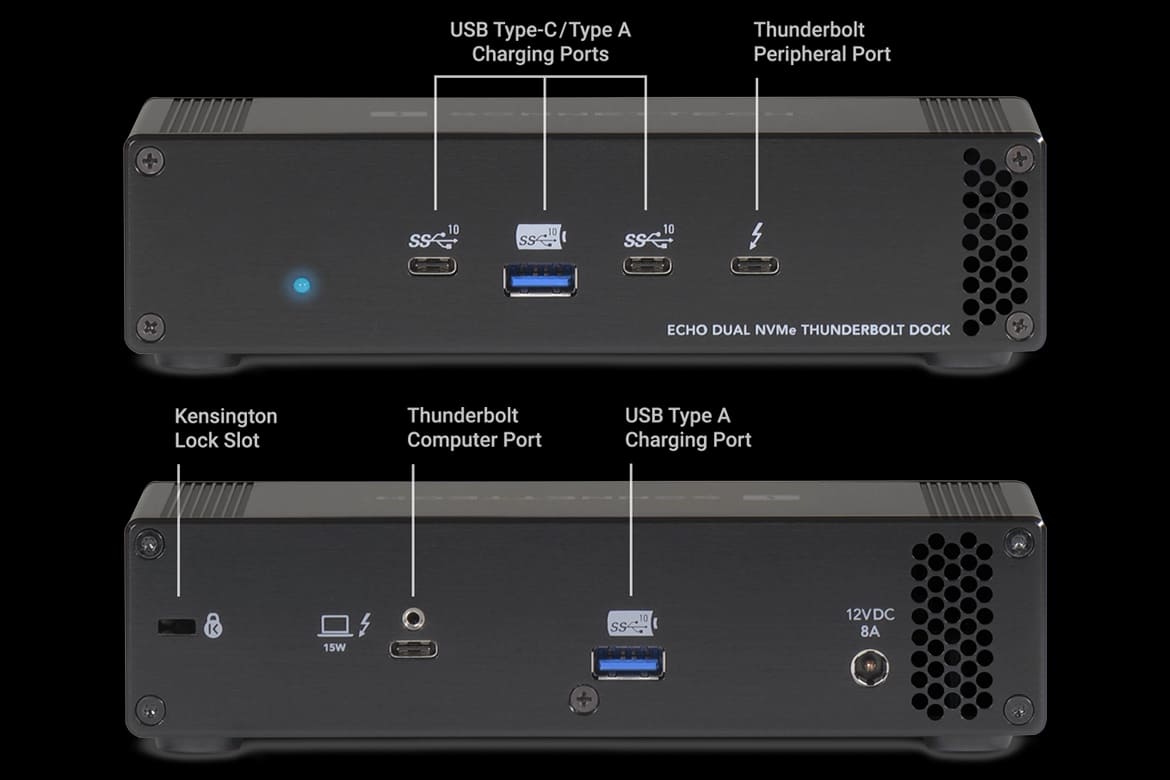

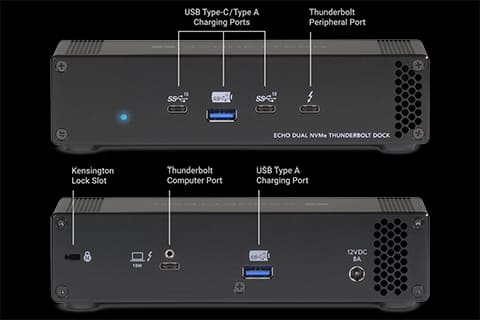

External Connectors
  • Two Thunderbolt ports
  • Two USB 3.2 (10Gbps) Type-C charging ports
  • Two USB 3.2 Gen 2 (10Gbps) Type A charging ports
  • One power connector
Thunderbolt 3 Computer Port Power Delivery
  • Provides laptop charging up to 15W


Cables Supported
  • Any Thunderbolt 4 cable
  • Any Thunderbolt 3 (40Gbps) cable
Thunderbolt 3 Peripherals Port Connectivity
  • With USB-C connector


Peripherals Supported
  • Thunderbolt 3
  • Thunderbolt 2 (macOS)
  • USB4
  • USB 3, 2.0, and 1.1 devices
  • Thunderbolt 3 and USB-C monitors
  • DisplayPort and HDMI monitors
USB 3.2 Gen 2 Type-C Ports Connectivity
  • With USB Type-C connector


Peripherals Supported
  • USB 3, 2.0 and 1.1 devices
  • Thunderbolt 3-only devices are NOT supported


Data Transfer Rate
  • USB 3.2 Gen 2 (previously USB 3.1 Gen 2) 10Gbps


Charging
  • 7.5W per port for operating or charging
  • 1.5A per port advertised using USB Type-C Charging
  • Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports Connectivity
  • With USB Type-A connector


Peripherals Supported
  • USB 3, 2.0 and 1.1 devices


Data Transfer Rate
  • USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps


Charging
  • 7.5W capacity to charge iPad, iPhone, or other device
  • USB Battery Charging 1.2-compliant
  • Supports simultaneous charging and syncing
Internal Connectors Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)
SSDs Supported Single- and double-sided M.2 2280 NVMe PCIe SSDs (with or without heat sink)
M.2 NVMe SSDs Compatibility PDF
Power Adapter Universal 96W, 100-240V AC, 50-60Hz
Kensington Security Slot Supports Standard, MicroSaver®, and MicroSaver 2 Locks
Operating Temperatures 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) Dock: 6.8 x 3.4 x 1.8 in. (7.3 x 8.6 x 4.44 cm)
Power Adapter: 2.8 x 4.9 x 1.0 in. (7.3 x 12.4 x 2.54 cm)
Weight Dock and Power Adapter: 2.2 lbs (1.0 kg)
Complete Package: 3.2 lbs (1.45 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
Package Contents
  • Echo Dual NVMe Thunderbolt Dock
  • Power adapter
  • Power cord
  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • ThunderLok 3 Thunderbolt connector retainer clip
  • Documentation

Mac Compatibility
  • Mac (M1, M2, M1 Pro, M1 Max, and M1 Ultra)
  • Mac (Intel) with Thunderbolt 3 ports
  • Mac (Intel) with Thunderbolt 2 or Thunderbolt port with with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable
  • macOS 10.12.6+
  • macOS Montery compatible

iPad Pro Compatibility
  • M1 iPad Pro

Windows Compatibility
  • Windows computer with Thunderbolt 4 or Thunderbolt 3 port(s)
  • Windows 11 and 10
